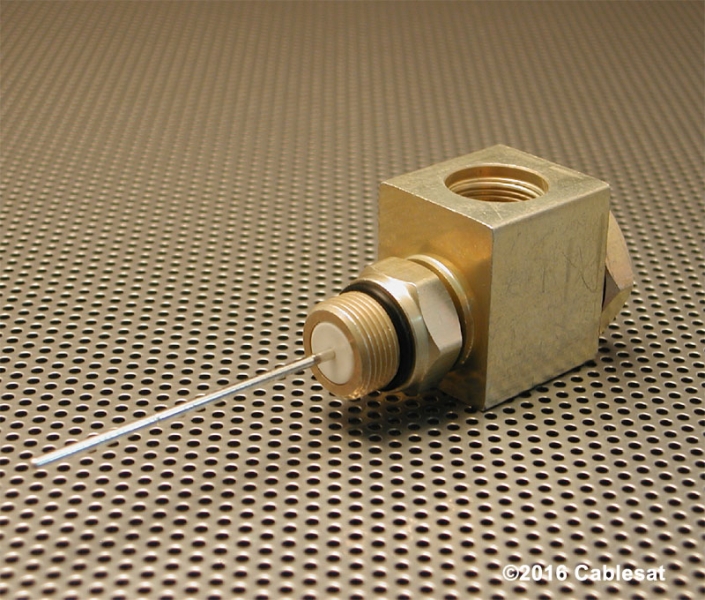

D90° Series
D90
Specifications
-
Bandwidth:DC~ 3GHz
-
Return Loss:>25 dB @1GHz
-
Temperature Range:-40 ℃ to +60 ℃
-
Impedance:75 Ohms
-
Interface:Meet SCTE IPS SP 501
-
Insertion Loss:<0.1dB @1GHz
Ordering Information
| Part Number | Extension | Pin Extend From Plane of housing |
| D90 | 58.7mm | |
| D90EX3 | 3” | 58.7mm |
| D90EX4.5 | 4.5” | 58.7mm |
| D90EX6 | 6” | 58.7mm |
| D90EX9 | 9” | 58.7mm |
For more information on Cablesat products, please contact us at info@cablesat.com.tw, we will get back to you as soon as possible.
