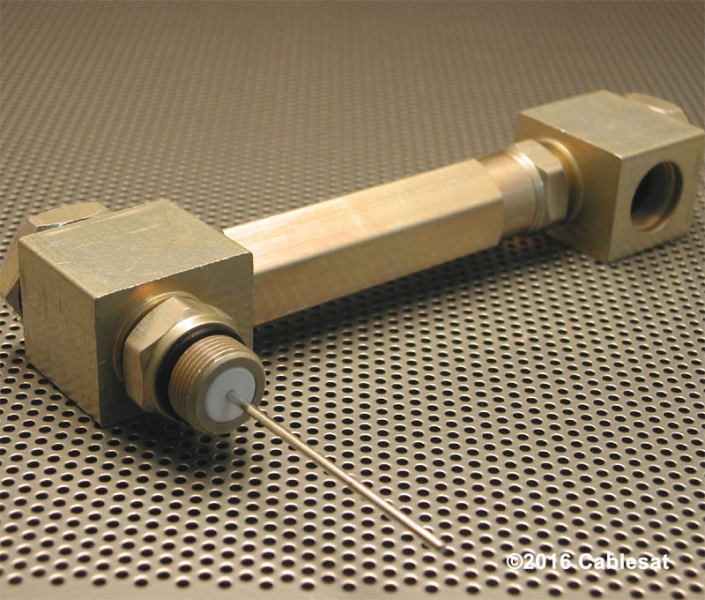

D180° Series
D180
Specifications
-
Bandwidth:DC~ 3GHz
-
Return Loss:>25 dB @1GHz
-
Temperature Range:-40 ℃ to +60 ℃
-
Impedance:75 Ohms
-
Interface:Meet SCTE IPS SP 501
-
Insertion Loss:<0.1dB @1GHz
Ordering Information
| Part Number | Extension | Pin Extend From plane of housing |
| D180 | 58.7 mm | |
| D180EX3 | 3” | 58.7 mm |
| D180EX4.5 | 4.5” | 58.7 mmA |
| D180EX6 | 6” | 58.7 mm |
| D180EX9 | 9” | 58.7 mm |
