K Series

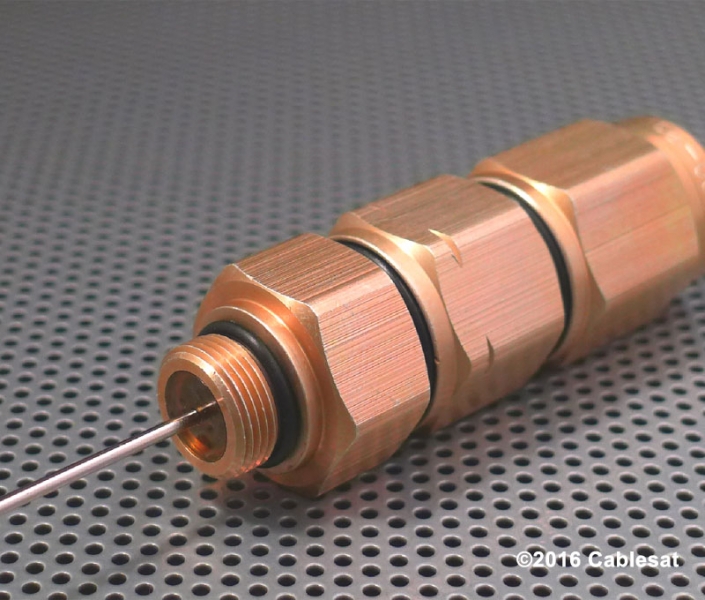

K500P-P3

Specifications

  • Bandwidth:
    DC~ 1GHz
  • Return Loss:
    >25dB @ 1GHz
  • Temperature Range:
    -40° to +60° C
  • Impedance:
    75 ohms
  • Interface:
    Meet SCTE IPS SP 501
  • Insertion Loss:
    <0.2dB @1GHz
>> Pin type for 500 P3 cable

Ordering Information

K Series Pin Type Connector
Part Number Body & Nut Hex.
K11P-RG 7/8”
K15P-RG 1”
K412P-P3 1”
K440P-MC2 1”
K500P-P3 1”
K500P-MC2 1”
K540P-QR 1”
K565P-TX 1”
K625P-P3 1”
K715P-QR 1-1/4”
K750P-P3 1-1/4”


For more information on Cablesat products, please contact us at info@cablesat.com.tw, we will get back to you as soon as possible.
