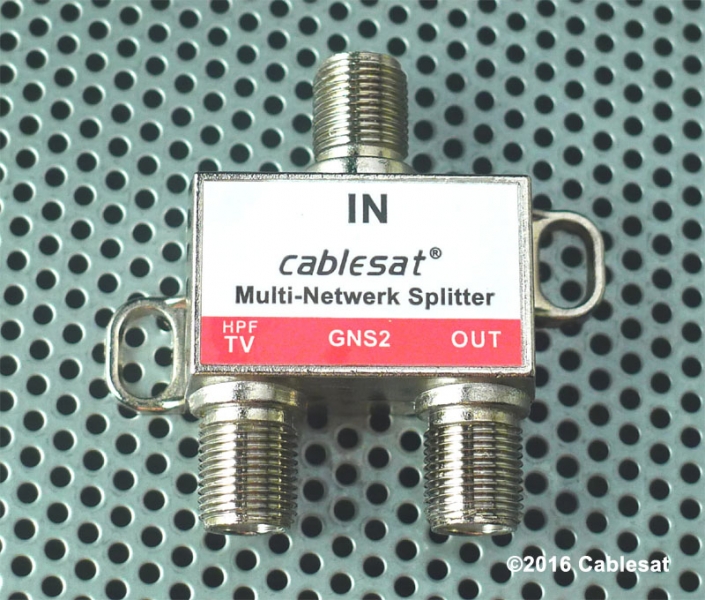

Network 2-way Splitter

GNS2

Specifications

  • Impedance:
    75 ohms
  • Stopband Rejection:
    >45 dB
  • Passband insertion loss:
    >16 dB

Ordering Information


Network Splitter
 Part Number  IN – TV Insertion loss  IN  CM Insertion loss
 GNS2  5 ~ 40 MHz > 45 dB
54 ~ 1000 MHz < 5.0 dB
 5 ~ 1000 MHz < 4.5 dB
 GNS2E  5 ~ 65 MHz > 45 dB
87 ~ 1000 MHz < 5.0 dB
 5 ~ 1000 MHz < 4.5 dB
 GNS2K  5 ~ 85 MHz > 45 dB
105 ~ 1000 MHz < 5.0 dB
 5 ~ 1000 MHz < 4.5 dB
 GNS2T  5 ~ 205 MHz > 45 dB
258 ~ 1200 MHz < 5.5 dB
 5 ~ 1200 MHz < 5 dB


For more information on Cablesat products, please contact us at info@cablesat.com.tw, we will get back to you as soon as possible.
