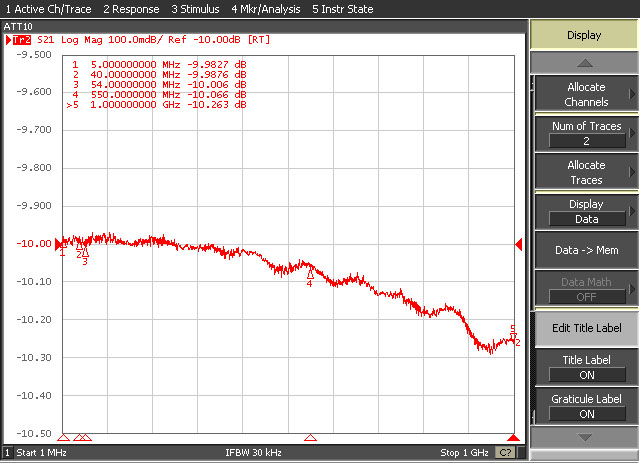

>> ATT10 performance

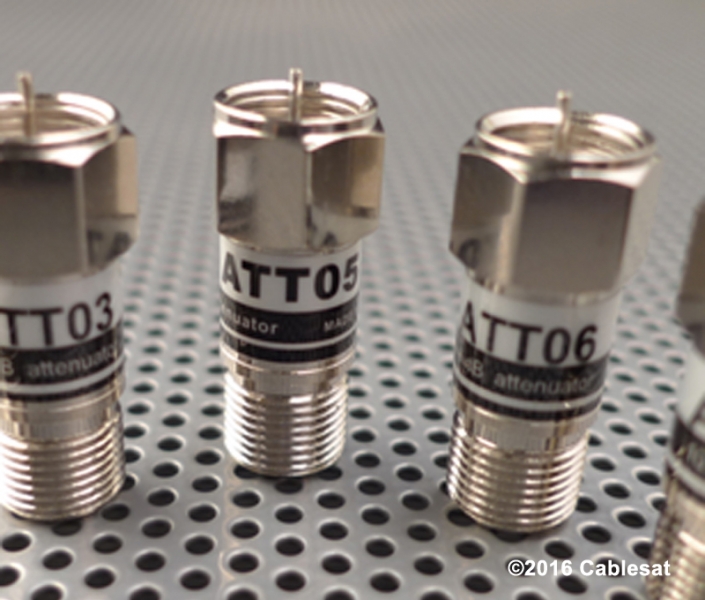

Attenuators
ATTxx Serie
Specifications
-
Bandwidth:1GHz
-
Return Loss:20dB(min) @1GHz
-
Interface:F female to F male
-
O-ring:EPDM
-
Dimension:11H x 27 L
>> ATT10 performance
Ordering Information
| Part Numbers | Attenuation | 5 ~ 1000 MHz Flatness |
| ATT01 | 1 dB | +/- 0.3dB |
| ATT02 | 2 dB | +/- 0.3dB |
| ATT03 | 3 dB | +/- 0.3dB |
| ATT04 | 4 dB | +/- 0.3dB |
| ATT05 | 5 dB | +/- 0.3dB |
| ATT06 | 6 dB | +/- 0.3dB |
| ATT07 | 7 dB | +/- 0.3dB |
| ATT08 | 8 dB | +/- 0.3dB |
| ATT09 | 9 dB | +/- 0.3dB |
| ATT10 | 10 dB | +/- 0.3dB |
| ATT11 | 11 dB | +/- 0.3dB |
| ATT12 | 12 dB | +/- 0.3dB |
| ATT13 | 13 dB | +/- 0.6dB |
| ATT14 | 14 dB | +/- 0.6dB |
| ATT15 | 15 dB | +/- 0.6dB |
| ATT16 | 16 dB | +/- 1.0dB |
| ATT17 | 17 dB | +/- 1.0dB |
| ATT18 | 18 dB | +/- 1.0dB |
| ATT19 | 19 dB | +/- 1.0dB |
| ATT20 | 20 dB | +/- 1.0dB |
Different values are available on customer's request.
