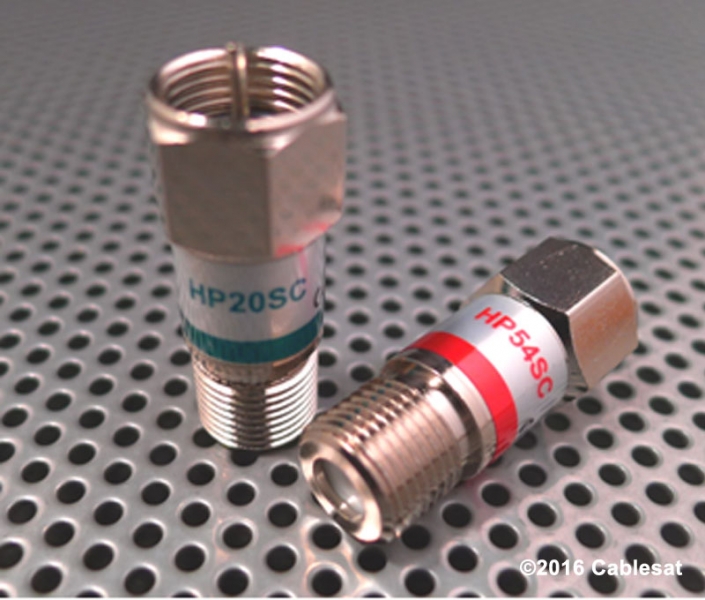

High Pass Filter

HPxxS Series

Specifications

  • Impedance:
    75 ohms
  • Interface:
    F female to F male
  • O-ring:
    EPDM
  • Dimension:
    11 H x 27L
  • Net weight:
    8.2g
  • Stopband Rejection:
    >45 dB
  • Waterproof:
    F male port
  • Passband insertion loss:
    <2.0 dB
  • Passband return loss:
    >16 dB

Ordering Information

High Pass Filter
 Part Number  Rejection Band  Pass Band

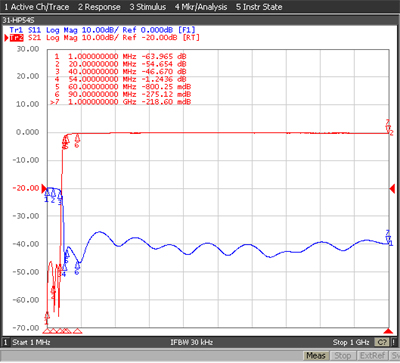

 HP54S  5 ~ 40 MHz  54 ~ 1000 MHz
 HP85S  5 ~ 65 MHz  85 ~ 1000 MHz
 HP105S  5 ~ 85 MHz  105 ~ 1000 MHz
 HP258S  5 ~ 204 MHz  258 ~ 1300 MHz

 Different passbands are available on request.
