>> EQ06 performance
In-Line Equalizers
EQxx Seires
Specifications
-
Bandwidth:5~1000MHz
-
Return Loss:>16dB
-
Impedance:75 ohms
-
Interface:F female to F male
-
Dimension:11H x 34 L
-
Net weight:11.5 g

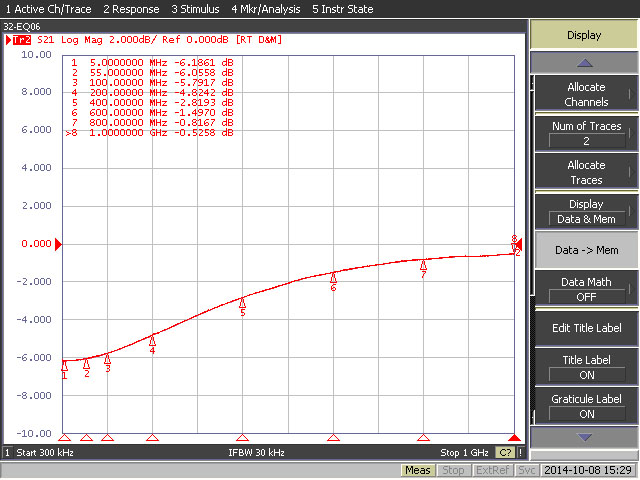

>> EQ06 performance
Ordering Information
| Part Numbers | Slope Loss |
| EQ02 | 2 dB |
| EQ03 | 3 dB |
| EQ04 | 4 dB |
| EQ05 | 5 dB |
| EQ06 | 6 dB |
| EQ07 | 7 dB |
| EQ08 | 8 dB |
| EQ09 | 9 dB |
| EQ10 | 10 dB |
| EQ11 | 11 dB |
| EQ12 | 12 dB |
