　Attenuation Band Flatness: +/-0.15 dB

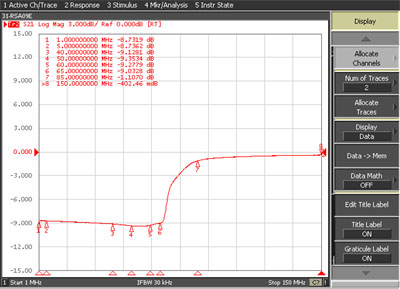

>> RSA85-09 performance 1~100MHz
Return Path Step Attenuator
RSA258-06
Specifications
-
Bandwidth:1GHz
-
Passband insertion loss:<1.5 dB
-
Passband return loss:>16 dB
Ordering Information
| Part Numbers Attenuation |
Return Path Band |
Return Path |
Pass Band |

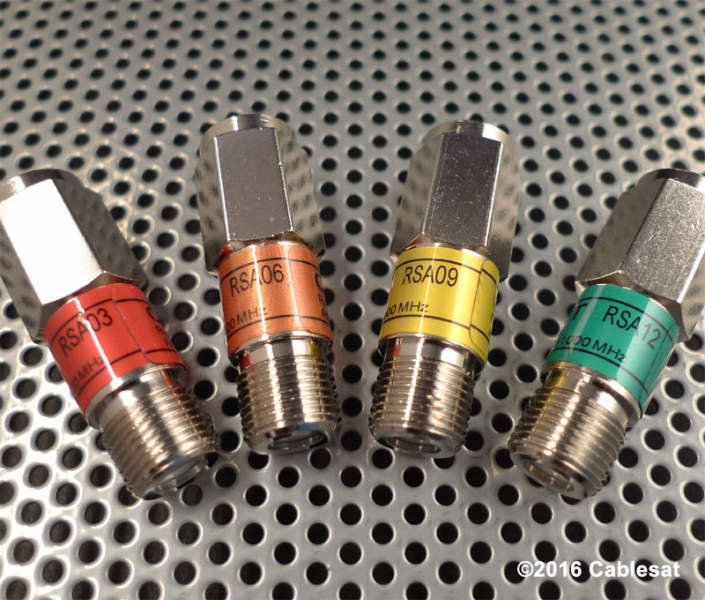

| RSA03 | 3 dB | 5~40 MHz | 54~1000 MHz |
| RSA06 | 6 dB | 5~40 MHz | 54~1000 MHz |
| RSA09 | 9 dB | 5~40 MHz | 54~1000 MHz |
| RSA12 | 12 dB | 5~40 MHz | 54~1000 MHz |
| RSA85-03 | 3 dB | 5~65 MHz | 85~1000 MHz |
| RSA85-06 | 6 dB | 5~65 MHz | 85~1000 MHz |
| RSA85-09 | 9 dB | 5~65 MHz | 85~1000 MHz |
| RSA85-12 | 12 dB | 5~65 MHz | 85~1000 MHz |
| RSA258-03 | 3 dB | 5~204 MHz | 258~1218 MHz |
| RSA258-06 | 6 dB | 5~204 MHz | 258~1218 MHz |
| RSA258-09 | 9 dB | 5~204 MHz | 258~1218 MHz |
| RSA258-12 | 12 dB | 5~204 MHz | 258~1218 MHz |
>>Different passband are available on request.
